Riveting press:

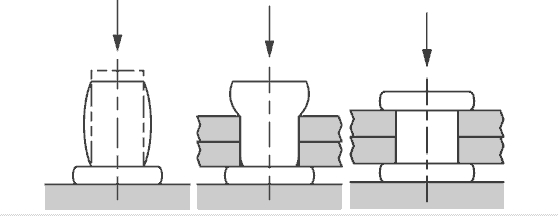

    Riveting press is to make the rivet forming directly by hydraulic or pneumatic cylinder with special molding tools, it applies extensively in automotive products, space flight and aviation, hardware machinery etc.

Main characteristics:

 ■Joint point is tight

 ■Stroke adjustable

 ■Can match the pre-pressing device to overcome bad transform

 ■The riveting time, pressure and speed are adjustable

 ■The pressure gentle, molding tool have no loss

 ■Will not hurt the surface protection layer

 ■To the metals material request not high, the copper aluminums are all unlimited

 ■Allowed to  have the mezzanine and many layers.

 ■As long as manufacture the different molding tool and it can process various shapes

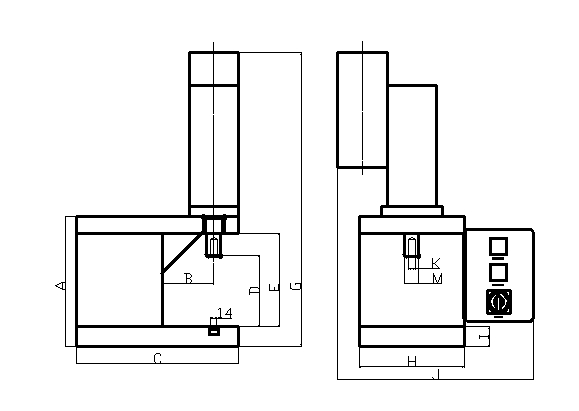

Model	Pressure	A	B	C	D	E	G	H	I	J	K	M
	KN	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm	mm
MTZ－5	50	396	157	492	218	286	850	320	60	560	Φ20	M42
MTZ－8	80	396	157	492	218	286	860	320	60	565	Φ20	M42
MTZ-10	100	396	157	492	218	286	870	320	60	580	Φ20	M42
MTZ-15	150	396	157	492	218	286	896	320	60	595	Φ20	M42
