ladder making machine

    According to the tube's shape the choice the process machine, square rung with rectangle profile by "Expanding machine" and "Flaring machine". Square rung with rectangle can be single section ladder, folding ladder, extension ladder, multi-purpose ladder, industrial ladder etc.

1. After opened holes on profile that will expanding process and made rungs on profile tightly:

Technical description of expanding machine model: ZYJ

Power                                         2.2Kw

Pressure                                      34Kn

Max. system pressure                  2.5MPa

Oil tank capacity                         180L

Oil (ISO)                                    HM46#

Expanding range                         Square , rectangle rung

Expanding head move                150mm x 2

Stroke of cylinder                       50mm (adjustable)

One working cycle                     0.3-99 Seconds (adjustable) one step

Ladder's width                           330-550mm (inside width)

Teeth height on rung                   05.mm -1.5mm adjustable

Physical size                               2300mmX600mmX1300mm

Net weight                                 110Kg

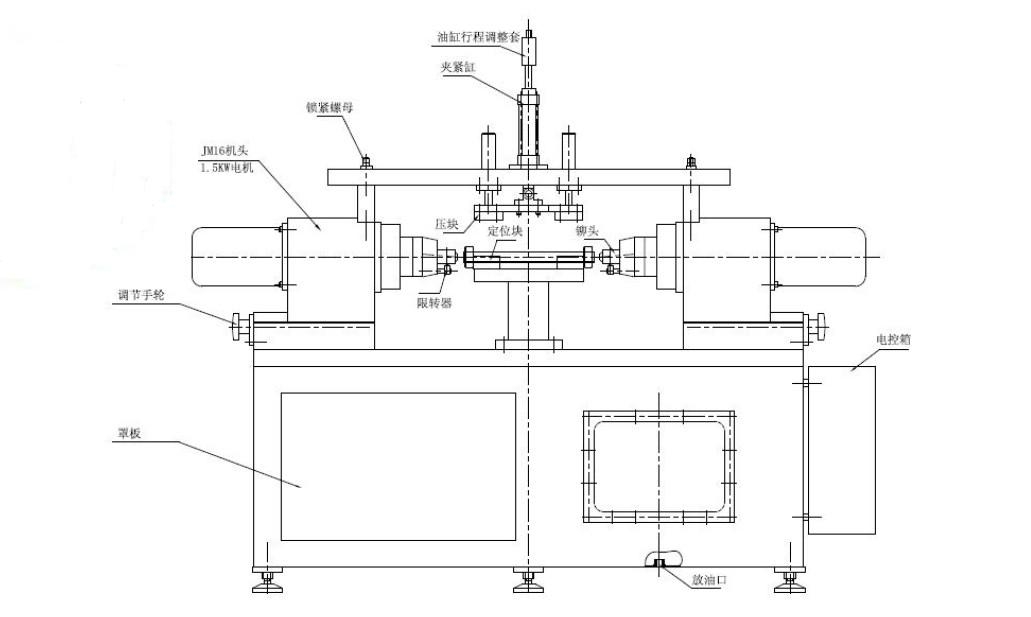

2.    Flaring of rung, after expanded that put the ladder on flaring machine model: JM16DT to flanging outside of profile,after this process that will finished a single sectction ladder:

Technical description :

Max. Pressure                                    34Kn

Power                                                4.4Kw

System pressure                                  2.5MPa

Oil tank capacity                                 180L

Oil (ISO)                                            HM46#

Power head move                               150mmX2 (adjustable)

Cylinder stroke                                    30X2  (adjustable)

Ladder width                                      330mm-550mm

Flaring range                                       "O", Square,rectangle ,triangle shape.

Thickness of rung                                  1mm-2mm

Working cycle                                    0.3-99 adjustable (one step)

Physical size                                       2400mmx600mmx1700mm

Net weight                                          1300Kg
