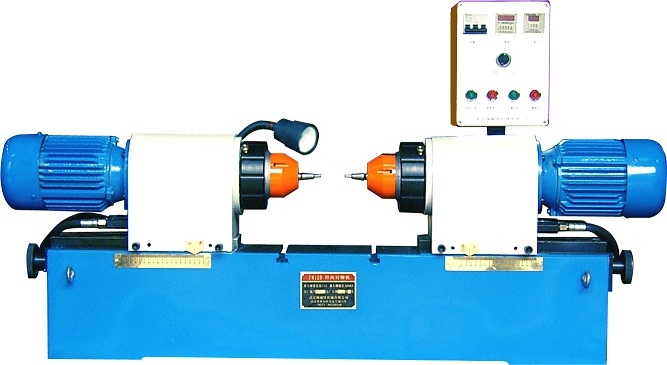

Desktop design // Radial structure // double head movable // Pneumatic or hydraulic as optional

Scope of application : The instrument appearance , daily hardware , electrical equipment and automobile parts etc.



Technical parameters:

▲ Max riveting diameter                                   Ф 9mm ( solid steel rivet)

▲ Max riveting pressure                                   14Kn

▲ Stroke Length Range                                    30mm

▲ Max. working distance of double head          370mm

▲Height from centre of tool to bench surface     155mm

▲ Motive force                                                 Hydraulic

▲ Power                                                          2.6Kw

▲ Physical size                                                 300mm×400mm×1400mm

▲ Net weight                                                   350Kg
