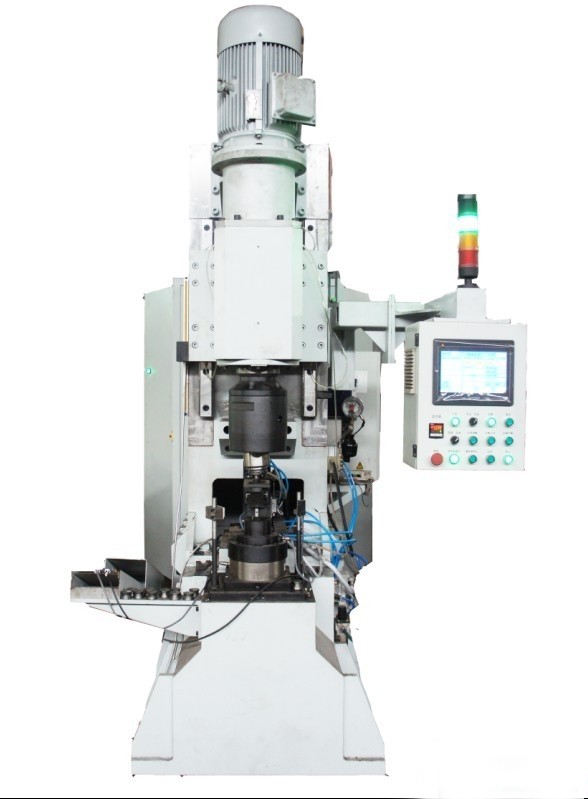

(Intelligentized riveting machine)LMB50-PLC
LMB50 intelligent riveting machine has integrated new concept, new ideas, and new technologies, design and manufacturing joint via Wuhan university and Wuhan rivet machinery Co.,Ltd . It besides the tranditional strong power, high rigidity of the bed and riveting control function, introduced new concept of comprehesive control system, greatly strengther the auxiliary control functions including position detection, work piece measuring, riveting pressure measurement, quantity statistics, quality analysis, fault diagnosis and alarm etc, operation on touch-screen interface with extremely simple, convenient and safe. The control system is in high reliability, high speed of MITSUBISH programmable controller and it has anti-jamming technology.



Technical Parameters:

Max riveting diameter                  Ф 50 mm (solid steel rivet )

Max riveting pressure                      200Kn

Stroke Length Range                       40 mm

Working space                                380 mm

Throat depth                                    325 mm

Spindle eccentricity

Motive force                                    Hydraulic

Dimension of workbench                  510 mm×680 mm

Power                                              6.4Kw



Main feature:

1.  Blank dimensions, illegal operation and fault that the machine will alarm and lock the

     machine.

2.  High precision, reiteration precision less or equal 0.01mm.



3.  Convenience to error correction



4.  Showing revised information in time, making machine working in best state.



5.  Real-time display workpiece number.



6.  Easy maintenance. Have picture of fault diagnosis, connected to network computer

     which can realize remote fault diagnosis and maintenance

7.  Manual, Clearance, Stepping, Dry running, Detection etc.

8.  Can save 9 piece's parameter s

9.  Spindle motor 11KW with stepless regulation.

10. Feeding motor: AC Servo motor 7 Kw

11. Cooling system: Fan

12. Lead rail: Linear guideway

13. Heavy-duty ball screw.

14. Guideway and lead screw by automatic lubrication.



15.Altimeter: Germany displacement sensor

16.Closed loop feedback: Grating scale, the resolution is 0.005 mm
