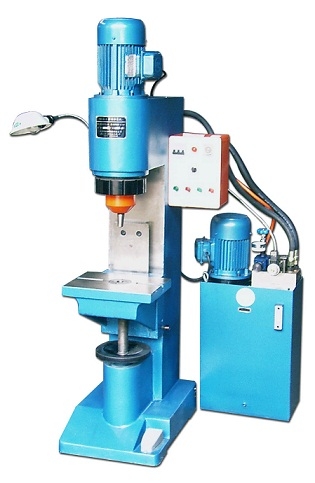

Orbital riveting machine BM16-A

Vertical type with medium sized // Orbital structure // Hydraulic driving //

Characteristics:

BM16-A machine is a medium-sized orbital hydraulic riveting machine, besides the utilization of the fifth generation technology, the machine is also equipped with screw lift table (Stationary Base part), the table has a trapezoidal groove clamps for the riveting die. The center of the working station is aligned with the spindle bore axis and it's used to better positioning the fixture. The riveting speed can be easily controlled with the installation of one-way valve oil.  The digital electronic control time relay and digital counters has been installed to ease the user control. Oil tank can be combined or disassembled with the machine for easy transportation and assembly. Riveting speed can be easily controlled by Fluid path-way valve. The workbench is equipped with long stroke screw lift system and made convenience for the adjustment of the machine. As a result of the above function and radial design, the riveting operation goes with ease and the workpiece finishing is created smoothly.







Application fields: Car parts such as door lock, window wiper, window

                                glass regulator, clutch disco, brake shoes and linings,

                                engine cap, ball joint, universal joint etc, daily hardware,

                                mine machinery, building tools such as scaffolding, swivel

                                coupler etc. medical instrument. Electrician tools etc.

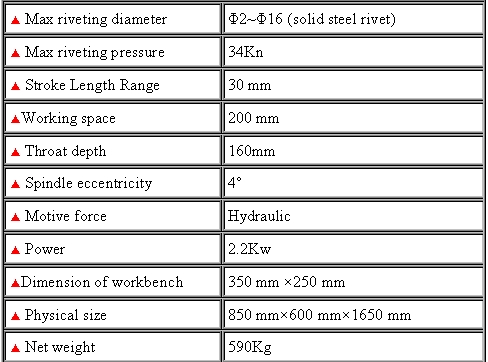

Technical Parameters:
