| < the bench design of opposite-riveting |
| < Max riveting diameter Ф9MM ( sincere steel rivet ) |
< The two work head can high and low be adjusted |
| < infinitely-variable pressing the hydraulic pressure drive |
| < Double speed (stroke and back) adjustable infinitely. |
| < Rotation part with safe cover |
| < Broadening the bench, the head go up and down |
| < Electricity control and broadened bench |
| < Scope of application : The instrument appearance , daily expenses five metals and electrical equipment etc |

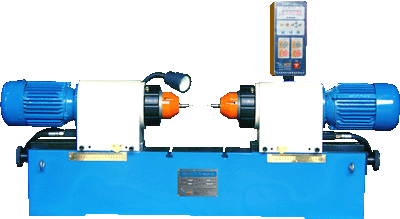

| can heighten \ adds long \ to broaden JM9D is a kind of newly developed radial riveting machine with double ended/multi-point riveting machine. Maximum riveting diameter is 9mm,and it's adopted advanced radial structure and riveting procedure stability have no rock and it can bring you a perfect results. This machine has plenty of adjustable functions, riveting speed, pressure can adjusting on double ended, the system pressure can be adjusted .The hydraulic station can put under the table or set part from the machine, This machine suitable for processing the rivet on double ended such as hinge of door, chain etc. available for process the ladder if matched the suitable holder. The advantage is that the double power can working simultaneously, also can control it one by one. |
| JM9D | | ▲ | Max riveting diameter | Ф 9MM ( solid steel rivet ) | | ▲ | Max riveting pressure | 14KN | | ▲ | Stroke Length Range | 30MM | | ▲ | Distance between the end of the tool | 370MM | | ▲ | Distance form the centre of main shart to the face of upright | 155MM | | ▲ | Motive force | Hydraulic | | ▲ | Power | 2.6Kw | | ▲ | Overall dimensions | 300MM×400MM×1400MM | | ▲ | Net weight | 350Kg |
|
