Desktop machine // Hydraulic with stepless regulation // Radial structure //Can be customized //

Scope of application: instrumentation, hardware, appliances etc



Technical parameters:

▲Max riveting diameter               Ф 6MM ( solid  steel rivet )

▲Max riveting pressure                9KN

▲Stroke Length Range                20MM

▲Working space                         150MM

▲Throat depth                             125MM

▲Motive force                             Hydraulic

▲Area of the table surface           320MM×220MM

▲Power                                      0.92Kw

▲Physical size                             400MM×350MM×800MM

▲Net weight                         150Kg

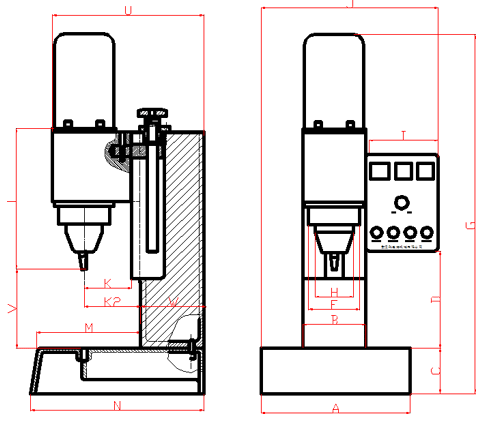

JM6T (mm) A B C D F G H I J K K2 M N  T U V W 320 160 90 180 Φ135 800 Φ85 288 420 105 125 225 400 180 365 150 160
