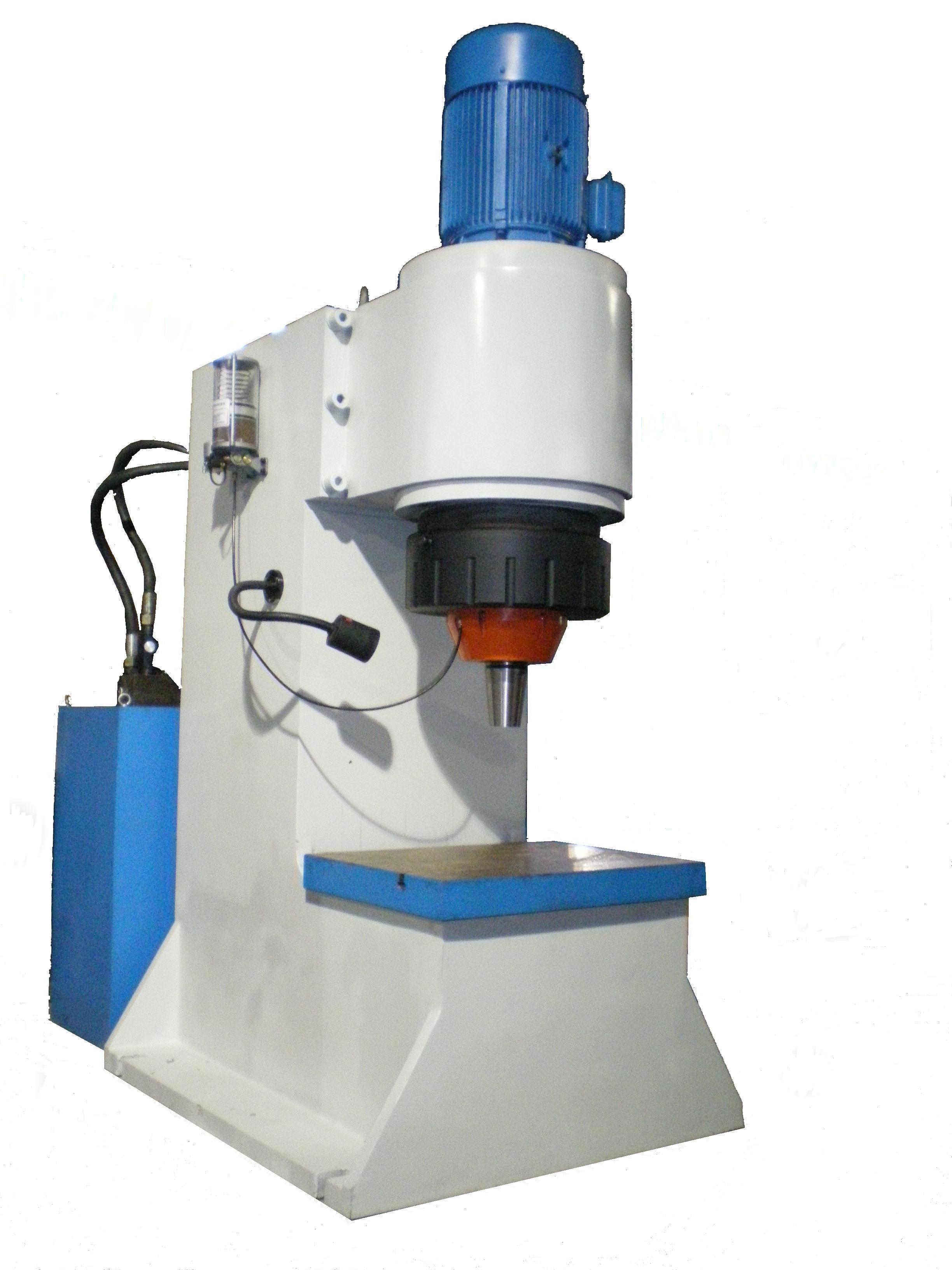

Heavy duty riveting machine // Vertical tpye with radial structure // Hydraulic driving //

Max riveting diameter Ф 50 mm (solid steel rivet ) //

Application fields: Aviation and aerospace instruments, railway vehicle parts, the car parts, especial for

                             hub bearing unit, mine machinery, building tools such as scaffolding, swivel coupler etc.



Technical parameters:

▲ Max riveting diameter                  Ф 50 mm (solid steel rivet )

▲ Max riveting pressure                   200 mm

▲ Stroke Length Range                    40 mm

▲ Working space                            380 mm

▲ Throat depth                                325 mm

▲ Spindle eccentricity                      4º

▲ Motive force                                Hydraulic

▲ Dimension of workbench             510 mm×680 mm

▲ Power                                         6.4Kw

▲ Physical size                                1185 mm×1000 mm×2400 mm

▲ Net weight                                  25000Kg
