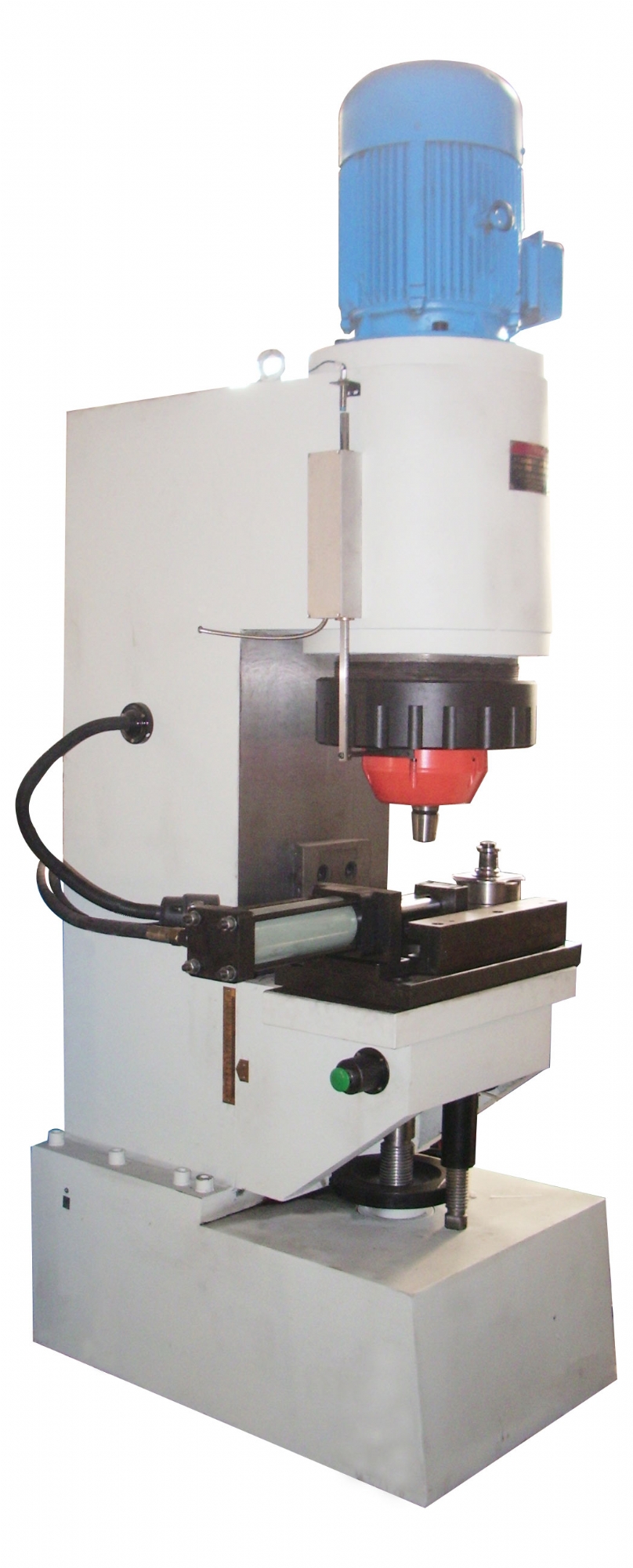

Heavy duty riveting machine // Vertical type with radial structure // Hydraulic driving //

Max riveting diameter Ф 30 mm (solid steel rivet ) //

Application fields:  Aviation and aerospace instruments, railway vehicle parts, the car parts,

                                   especiallh  suitable for  process  hub bearing unit, mine machinery, etc.



Technical parameters:

▲ Max riveting diameter                  Ф 40 mm (solid steel rivet )

▲ Max riveting pressure                   160Kn

▲ Stroke Length Range                   40 mm

▲ Working space                            280 mm

▲Throat depth                                185 mm

▲ Spindle eccentricity                      4º

▲Motive force                                 Hydraulic

▲Dimension of workbench              560 mm×280 mm

▲Power                                         6.4Kw

▲Physical size                                950 mm×600 mm×2320 mm

▲ Net weight                                 40000Kg
